810 Commercial Water System

Water Filter Specs

The 810 Commercial Water Filter is a no maintenance, whole facility water Filtration system. This system includes a fully automatic valve head that runs a self-rinsing cycle every 14-days.

• Inlet Connection 1" PVC Threaded MIP
• Outlet Connection 1" PVC Threaded MIP

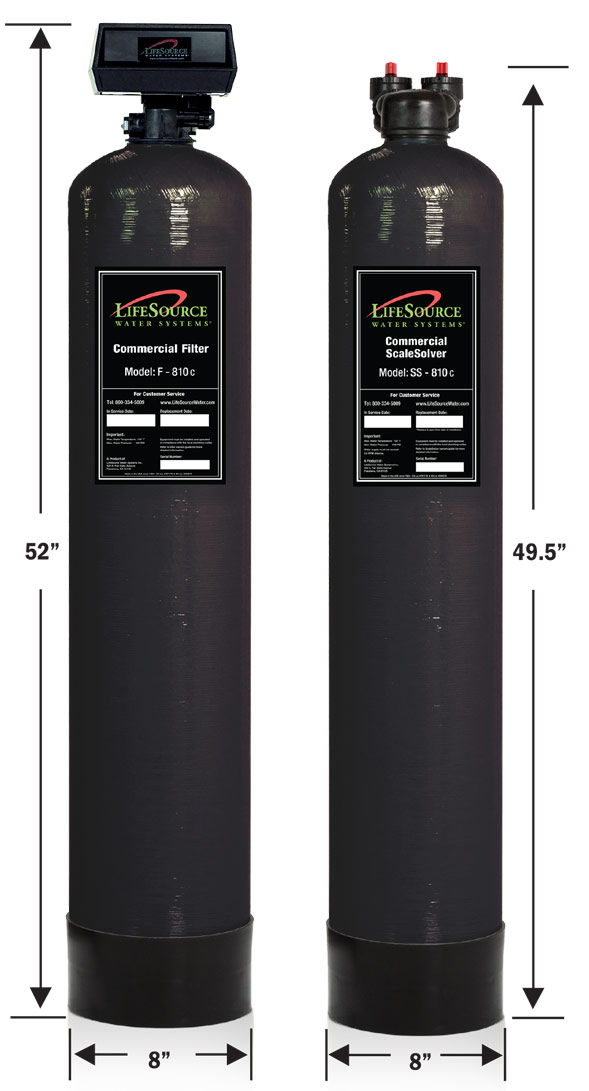

• Max. Dimensions 52" x 8 "
• Max. Flow Rate 10 gpm
• Max. Pressure Min. 40 psi, Max. 100 psi
• Dry Weight 39 lbs.
• In-Service Weight 115 lbs.

Power Requirement:

1 standard 110v electrical outlet within 5’ of system or a 24v transformer plugged into a more distant electrical outlet.

*In areas where outside temperatures are less than 32°F for an extended period of time, insulation is required

ScaleSolver Specs

The 810 Commercial ScaleSolver is self-contained and ready to use. A simple inlet and outlet connection is all that is required for installation. No backwash is necessary.

• Inlet Connection 1" PVC Union with Threaded MIP
• Outlet Connection 1" PVC Union with Threaded MIP
• Max. Dimensions 49.5“ x 8"
• Max. Flow Rate 20 gpm
• Max. Pressure 100 PSI
• Dry Weight 17 lbs.
• In-Service Weight 90 lbs.

* Chlorine must not be above 3.0 PPM.

*In areas where outside temperatures are less than 32°F for an extended period of time, insulation is required
